Show All LinuxCNC Supported Boards

7I34-485 Eight Channel RS-422/RS-485 interface

The 7I34 is a 8 channel RS-422/RS-485 interface for Mesa's Anything I/O series of FPGA interface cards. The 7I34 has 8 independent receive and transmit channels. Each transmit channel has a independent drive enable for bus or 2 wire half duplex systems. The controller connection is a 50 pin header t

121,62 €

7I77U Analog servo interface plus I/O daughtercard - Universal output version

The 7I77U is daughtercard/breakout board for use with MESA's 25 pin I/O FPGA cards like the 6I25, 7I92TM or 7I96. The 7I77U is designed for interfacing up to 6 Axis of analog servo motor drives and also provides 48 isolated I/O points for general purpose field I/O use. Six +-10V analog outputs and s

281,32 €

7I85S-5I25T PLUG-N-GO KIT

7I85S-5I25T PLUG-N-GO KIT - (FOR DIN RAIL MOUNTING, ADD DIN RAIL ADAPTER KIT)

194,09 €

7I85-5I25T PLUG-N-GO KIT

7I85-5I25T PLUG-N-GO KIT - (FOR DIN RAIL MOUNTING, ADD DIN RAIL ADAPTER KIT)

194,09 €

7I78-5I25T PLUG-N-GO KIT

7I78-5I25T PLUG-N-GO KIT - (FOR DIN RAIL MOUNTING, ADD DIN RAIL ADAPTER KIT)

194,09 €

7I37F Isolated I/O card

The 7I37 F is an 8 output, 16 input isolated I/O card. The 7I37TA provides 8 Isolated 48VDC 1A output drivers. All output drivers are low saturation voltage MOSFETS for low power dissipation. Each of the 8 output switches is isolated from the others, allowing high side, low side, push-pull and other

97,04 €

7I76U-5I25T PLUG-N-GO KIT

7I76U-5I25T PLUG-N-GO KIT - (FOR DIN RAIL MOUNTING, ADD DIN RAIL ADAPTER KIT)

255,50 €

7I76U-6I25 PLUG-N-GO KIT

7I76-6I25 PLUG-N-GO KIT - (FOR DIN RAIL MOUNTING, ADD DIN RAIL ADAPTER KIT)

280,08 €

7I84U Isolated remote field I/O card - Sourcing/Sinking outputs

The 7I84U is a remote isolated 32 input and 16 output digital I/O card. The 7I84U is identical to the 7I84 except that it has universal sourcing/sinking/push-pull outputs. The 16 outputs are rated 5VDC to 28VDC with 500 mA maximum current capability. Outputs have per output short circuit protection,

97,04 €

7I76U STEP/IO Step&dir plus I/O daughtercard - Universal output version

The 7I76U is daughtercard/breakout board for use with MESA's 25 pin I/O FPGA cards like the 5I25T,6I25 and 7I92T. The 7I76U is designed for interfacing up to 5 Axis of step & dir step motor or servo motor drives and also provides a spindle encoder interface, isolated analog spindle speed control and

146,18 €

3X20-1 External PCIE Anything I/O daughtercard --BAD--

The MESA 3X20 is a high I/O density external PCIE FPGA card. The 3X20 has 144 user I/O available on a tiny 2.5" x 3.25" card. The 3X20 connects to the host via a standard 1 lane PCIE cable or through its motherboard connector. All core and I/O power is regulated on card so only single external 3.3V

24,56 €

7I77U-5I25T PLUG-N-GO KIT

7I77U-5I25T PLUG-N-GO KIT - (FOR DIN RAIL MOUNTING, ADD DIN RAIL ADAPTER KIT)

390,64 €

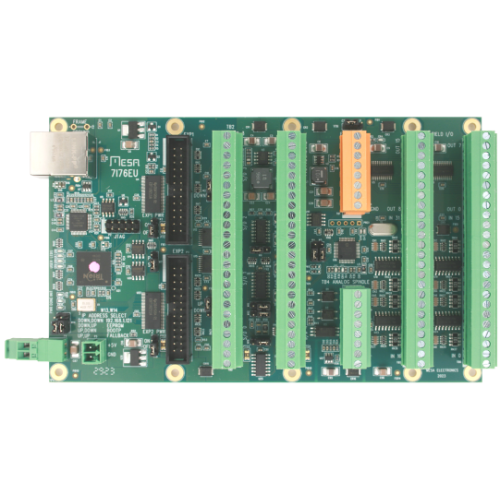

7I76EU STEP/IO Step & dir plus I/O card - universal output version

The 7I76EU is a remote FPGA card with Ethernet interface designed for interfacing up to 5 Axis of step/dir step motor or servo motor drives and also provides a spindle encoder interface, isolated analog spindle speed control and 48 isolated I/O points for general purpose field I/O use. All step and

269,02 €

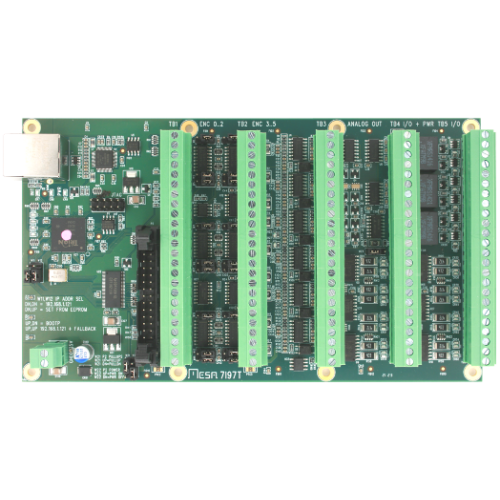

7I97T Ethernet interfaced Analog servo plus I/O

The 7I97T is a Ethernet connected motion control interface designed for interfacing up to 6 Axis of analog servo motor drives and includes encoder feedback for each axis. The 7I97 has 6 +-10V analog outputs and 6 drive enable outputs. The 7I97T also has 16 isolated inputs plus 6 isolated outputs for

342,72 €

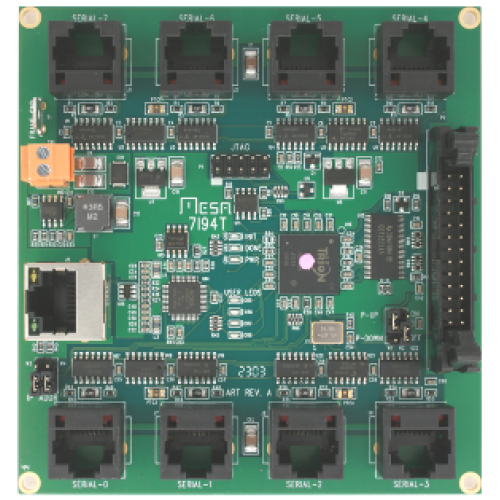

7I94T Anything I/O Ethernet card

The 7I94T is a Ethernet connected motion control interface designed for interfacing up to eight high speed RS-422 or RS-485 serial devices including Mesa sserial remote interfaces, absolute encoders and MODBUS devices. In addition, a FPGA expansion connector compatible with Mesa's 25 pin daughtercar

146,18 €

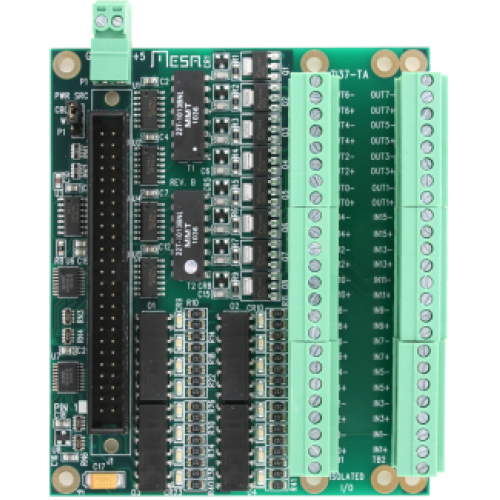

7I37TA RevD 8 output, 16 input isolated I/O card

The 7I37 TA RevD is an 8 output, 16 input isolated I/O card. The 7I37TA RevD provides 8 Isolated 48VDC 2A output drivers. All output drivers are low saturation voltage MOSFETS for low power dissipation. Each of the 8 output switches is isolated from the others, allowing high side, low side, push-pul

109,32 €

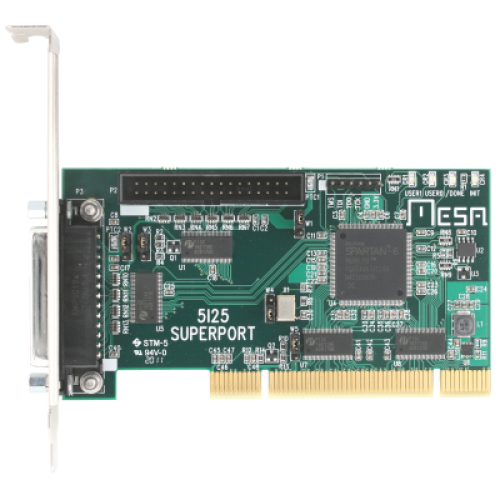

5I25T Superport FPGA based PCI Anything I/O card (requires LinuxCNC 2.9.2 or greater)

The MESA 5I25T is a low cost, general purpose, FPGA based programmable I/O card for the PCI bus. The 5I25T is a low profile PCI card (available with low profile and standard brackets, low profile bracket shown here) that uses standard parallel port pinouts and connectors for compatibilty with most p

109,32 €

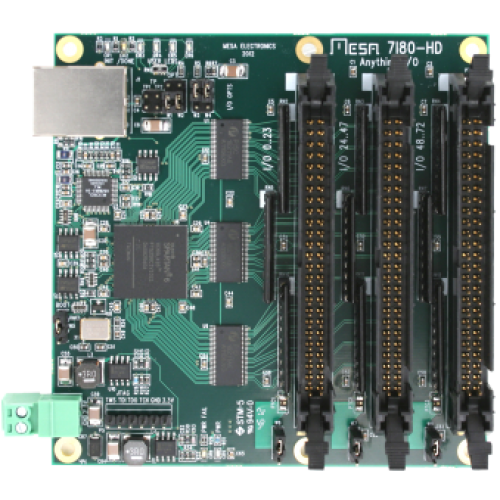

7I80HDT Ethernet Anything I/O card

The MESA 7I80HDT is a low cost, general purpose, FPGA based progr ammable I/O card with 100 BaseT Ethernet host connection. The 7I80HDT has a simplified UDP host data transfer system that allows operation in real time if required and compability with standard networks for non-real time applications.

183,02 €

7I95T Ethernet interfaced Step/dir +encoder + I/O

The 7I95T is a Ethernet connected motion control interface designed for controlling up to 6 Axis of step&dir step motor or servo motor drives and includes encoder feedback for each axis. The 7I95T replaces the 7I95 and offers better Ethernet ESD resistance, better Input RFI rejection and a larger FP

305,88 €

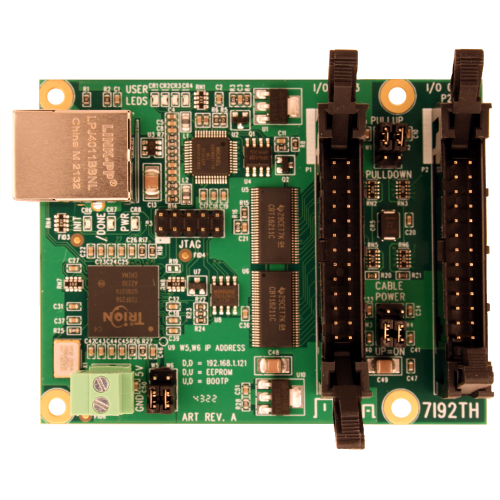

7I92TH Anything I/O Ethernet card 2x 26 pin header

The MESA 7I92TH is a low cost, general purpose, FPGA based programmable I/O card with 100 BaseT Ethernet host connection. The 7I92T series replaces the 7I92 series cards. Enhanced features include a larger FPGA, better Ethernet ESD protection, and a pullup/pull down option for the I/O pins. The 7I92

133,90 €

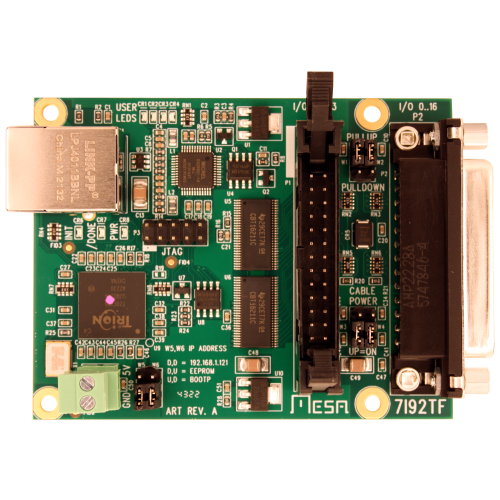

7I92TF Anything I/O Ethernet card 1x DB25 Female, 1x 26 pin header

The MESA 7I92TF is a low cost, general purpose, FPGA based programmable I/O card with 100 BaseT Ethernet host connection. The 7I92T series replaces the 7I92 series cards. Enhanced features include a larger FPGA, better Ethernet ESD protection, and a pullup/pull down option for the I/O pins. The 7I92

133,90 €
