Motion Control

The 4I27 is a low cost, LM629 based 2 axis DC servo motor control system implemented on a stackable PC/104 bus card. The 4I27 is designed for high performance positioning systems using DC servo motors with quadrature shaft encoders. The per axis output of the 4I27 is an 8 bit sign-magnitude PWM sign

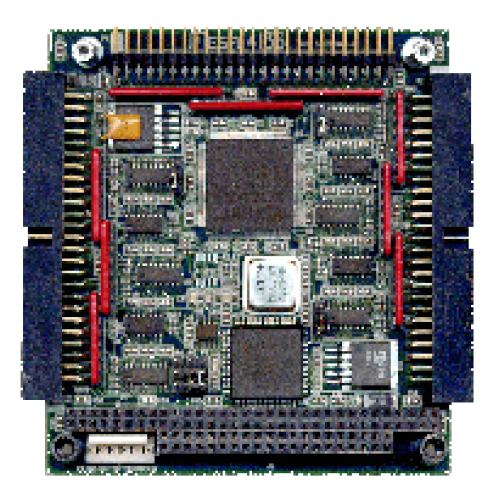

The 4I36 is a stackable PC/104 card with eight 32 bit up/down counters with quadrature count inputs and per channel index inputs. The 4I36 is intended for robotic, motor control, measurement, and instrumentation applications. The 4I36 has selectable TTL or RS-422 levels on its quadrature and index i

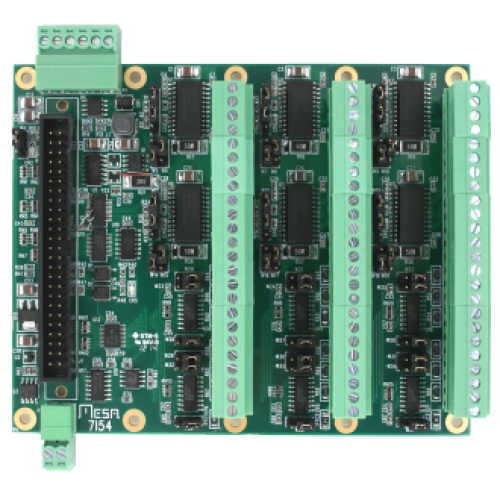

The 7I54 is a low cost 6 Axis H-bridge card for use with Mesa motion control cards. The 7I54 has a maximum per axis current rating of 3 Amps and a voltage rating of 40V. Current limits of 1 Amp and 3 Amp are user selectable, as are voltage and current (torque) modes. All motor power circuitry is gal

RS-232 to 4XRS-422 adapter for 3C20

The SoftDMC firmware converts any of our FPGA based I/O cards to a high performance DSP based motion control system. The SoftDMC system supports up to 8 axis simultaneous motion. Features include Position and Velocity control modes, trapezoidal motion profiles, cubic motion profiles, 32 bit position

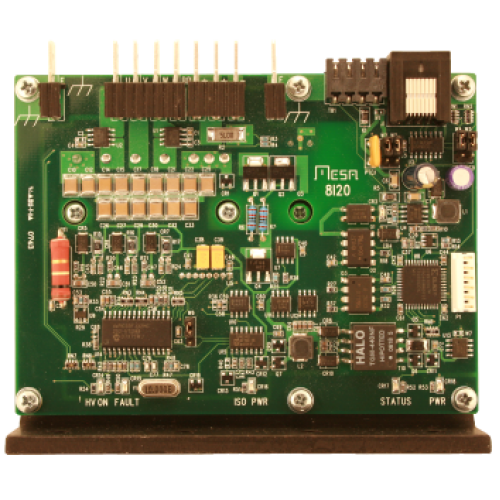

The 8I20 is a low cost 2200W 400V three phase torque mode amplifier for synchronous permanent magnet servo motors (Brushless AC servo) up to approximately 3HP. The 8I20 will supply peak currents of 30A. High side logic and gate power are derived from the low side allowing a wide operational bus volt

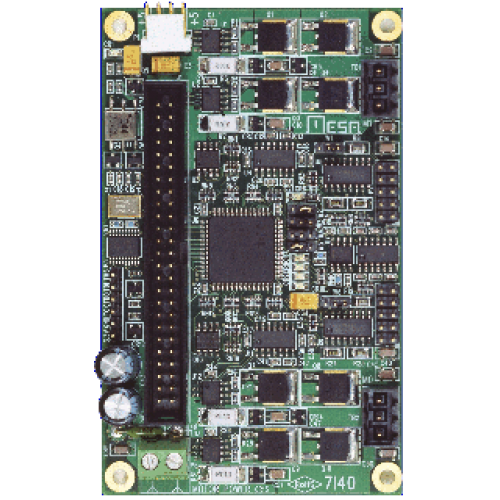

The 7I40 is a Dual H bridge driver for two brush type motors or other inductive loads. The 7I40 is available in low voltage and high voltage models (7I40-LV and 7I40-HV). The 7I40-LV is rated at 10A 40 VDC per axis while the 7I40-HV is rated at 7A 80 VDC per axis. Each bridge on the 7I40 has selecta

The 7I40 is a Dual H bridge driver for two brush type motors or other inductive loads. The 7I40 is available in low voltage and high voltage models (7I40-LV and 7I40-HV). The 7I40-LV is rated at 10A 40 VDC per axis while the 7I40-HV is rated at 7A 80 VDC per axis. Each bridge on the 7I40 has selecta

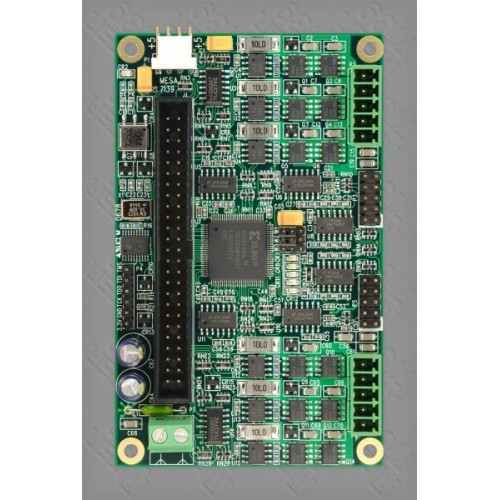

The 7I39 is a Dual 3 Phase bridge driver for Brushless 3 phase motors. The 7I39 is available in low voltage and high voltage models. The low voltage model is rated at 10A 30 VDC per axis while the high voltage model is rated at 5A 50 VDC per axis. Each 3 Phase bridge on the 7I39 has selectable overc

The 7I39 is a Dual 3 Phase bridge driver for Brushless 3 phase motors. The 7I39 is available in low voltage and high voltage models. The low voltage model is rated at 10A 30 VDC per axis while the high voltage model is rated at 5A 50 VDC per axis. Each 3 Phase bridge on the 7I39 has selectable overc

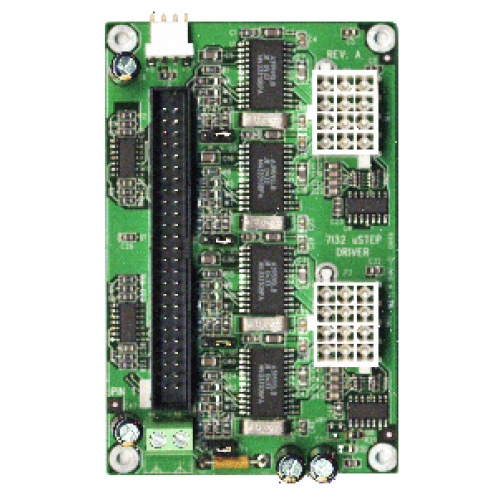

The 7I32 is a 3A, 36V 2 channel current feedback microstep (up to 256 uSteps/ step) capable stepper motor driver for the Anything I/O series of FPGA based I/O cards. They use high efficiency synchronous rectifying drivers, eliminating the need for heat sinks. They connect to the motion controller ca

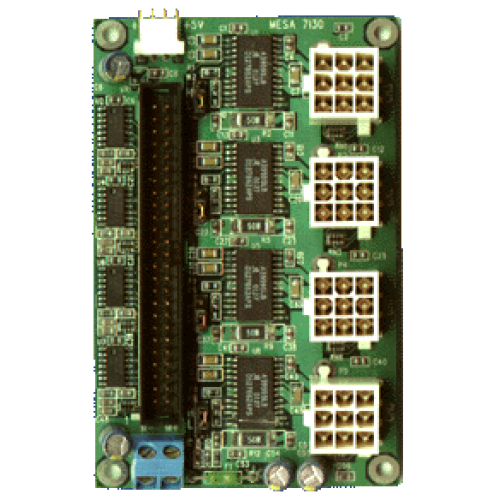

The 7I30-4 is a 3A, 36V 4 channel H-bridge motor driver for the 4I27, 4I34, 4I65, 5I20 and 7I60 motion controllers. They use high efficiency synchronous rectifying drivers, eliminating the need for heat sinks. They connect to the motion controller card with a 50 conductor flat cable and have AMP Min

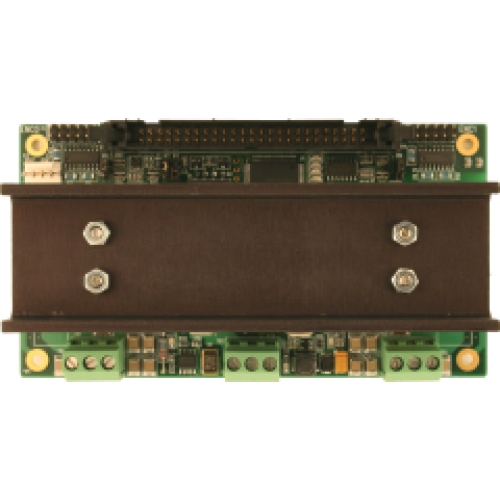

The 7I29 is 2 channel H-bridge motor drivers for the 4I27 or FPGA based motor controller cards. The 7I29 connects to the motor controller card with a 50 conductor flat cable and have screw terminals for motor power and motor connections. Two 7I29's can share a 4 Axis 50 conductor cable to FPGA contr

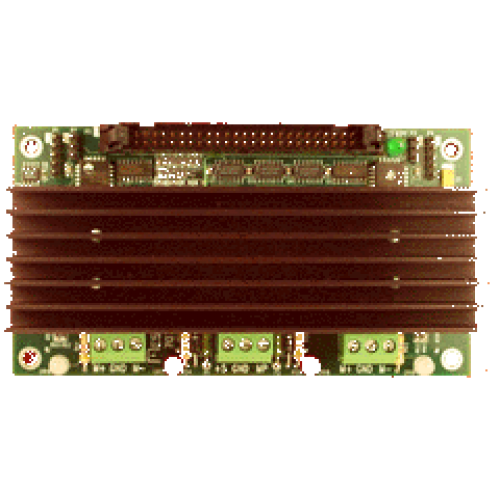

The 7I27 is 2 channel H-bridge motor drivers for the 4I27 motor controller card or the Anything I/O series of FPGA cards . It connects to the motor controller card with a 50 conductor flat cable and have screw terminals for motor power and motor connections. Encoder and index input connectors are al

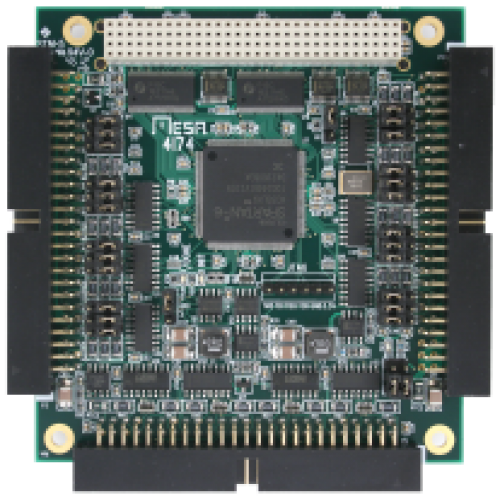

The 4I74 is a stackable PCI/104 card with eight quadrature up/down counters with quadrature count inputs, quadrature edge timestamping for velocity estimation and per channel index inputs. The 4I74 is intended for robotic, motor control, measurement, and instrumentation applications. The 4I74 has se

The 4I36 is a stackable PC/104 card with eight 32 bit up/down counters with quadrature count inputs and per channel index inputs. The 4I36 is intended for robotic, motor control, measurement, and instrumentation applications. The 4I36 has selectable TTL or RS-422 levels on its quadrature and index i

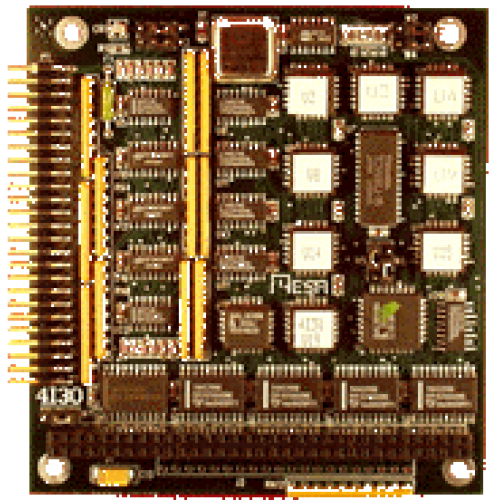

The 4I30 is a stackable PC/104 card with four 32 bit up/down counters with quadrature count inputs and per channel index inputs. The 4I30 is intended for robotic, motor control, measurement, and instrumentation applications. The 4I30 has selectable TTL or RS-422 levels on its quadrature and index in
