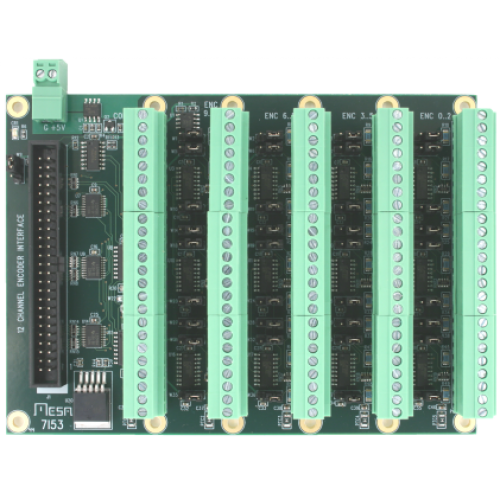

7I53 12 Channel encoder 2 channel Serial RS-422 interface

Mesa Electronics, Artikel 7I53.

The 7I53 is a twelve channel encoder interface plus two channel RS-422 interface for Mesa's Anything I/O series of FPGA interface cards.  The 7I53 is designed for motion control and measurement applications. One of the 7I53's serial links support RS-485 operation.  Encoder inputs can be TTL or differential on a per input basis.  The 7I53 can also supply 5V power to encoders.  The controller connection is a 50 pin header that matches the pinout of Mesa's Anything I/O cards. All buffered I/O is terminated with 3.5 mm pluggable screw terminals (supplied).

Lieferung aus dem Lager oder auf Bestellung bei Mesa (Lieferzeit etwa 3 Wochen); Preise netto zuzüglich Versand.
