6I68 3X2X 1X PCIE slot motherboard

Mesa Electronics, Artikel 6I68.

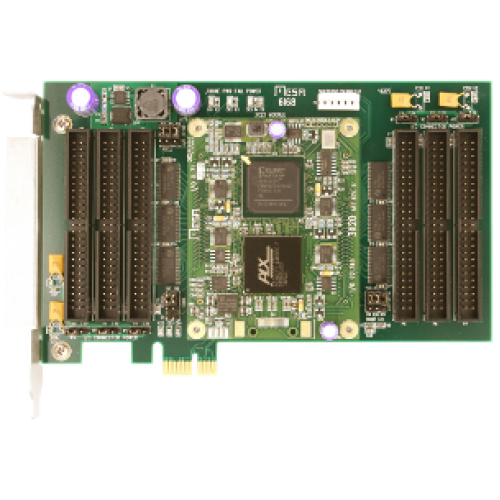

The MESA 6I68 (shown here with 3X20 installed) is a simple motherboard for 3X2X series FPGA daughtercards that plugs into a standard one lane PCI-Express slot.  The 6I68 provides a base and simplified I/O connections for the 3X2X series daughtercards.  The 6I68 can be used for evaluation of 3X2X series cards or for final applications.  The 6I68 buffers all I/O pins with quickwitches for 5V tolerance on all I/O, and provides jumpers for setting the 3X2X's VIO levels and configuration options.  The 7I68 distributes the 3X2X's 144 I/O signals to six 50 pin .1" headers with standard Anything I/O pinouts.  All signal are routed as differential pairs, allowing high speed differential signaling if desired.

Lieferung aus dem Lager oder auf Bestellung bei Mesa (Lieferzeit etwa 3 Wochen); Preise netto zuzüglich Versand.
